Sensing Devices
Frequency-Flow-Contact-Event-Counter and Ambient Temperature sensor to USB output - Model LFS108E
Regular price
$69.00
Typical Applications
- Send a tweet alert based on your sensor data from IoT platform ThingSpeak
- Measure Frequency of Paddle wheel sensors and calculate the Flow and Totalization
- Measure mechanical or electrical contact closure events from external sensing devices
- Count the number of contact closures or input pulses for different applications
- Measure Frequency & ambient temperature in research & scientific projects, educational projects and universities
- Send the sensor data to the Cloud for data visualization and analysis - IoT platform ThingSpeak - No subscription fees
- Use the board as an Evaluation board (Module) in your design for small or large system integrations
Hardware Specification Highlights
- Frequency Range: 2Hz to 200 KHz
- Frequency Accuracy: 0.5% of Rdg or 0.1 Hz whichever is larger
- Temperature Range: -15 to 85 °C (5 to 185 °F)
- Temperature Accuracy: 1.4 °C (2.5 °F)
- Dimensions: 2.35 x 0.70 inches (59.7 x 17.8 mm)
- PC Software is included
- Connect to Computer boards such as Raspberry Pi. Sample Python program is available
- Interfaces National Instruments Labview program. Sample vi program is available
- Product comes with a USB cable
PC Software Specification Highlights

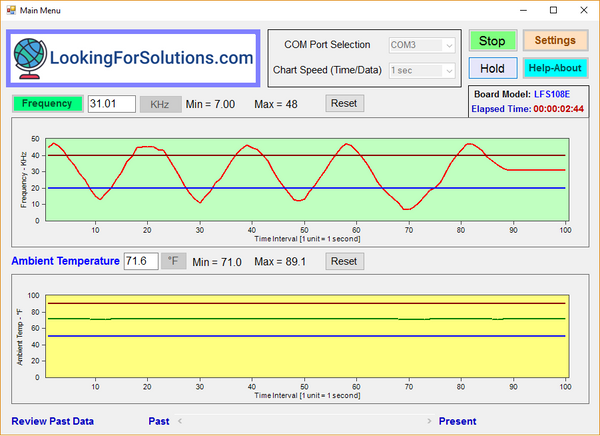

- Monitors & Logs Frequency and ambient temperature

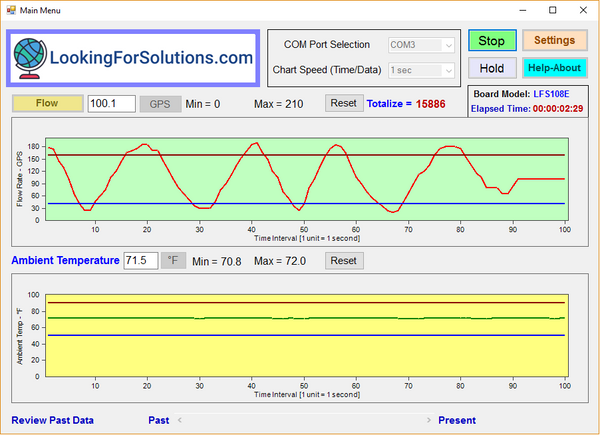

- Monitors & Logs Flow, Totalization and ambient temperature

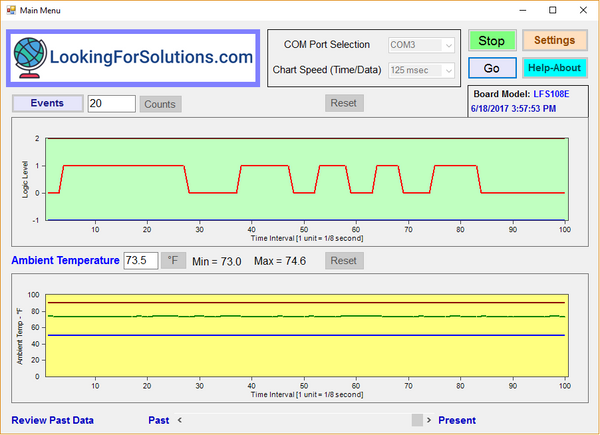

- Monitors & Logs Contact/Event and ambient temperature
- Monitors & Logs incoming pulses and ambient temperature
- Sends email and text message on alarm condition
- Sends real time data to the Cloud for data visualization and analysis
- Verbalizes a message on alarm condition
- Software Field Calibration
- Monitor & Log up to 12 USB sensors simultaneously using our free data acquisition software (LFSDAQ)
