LFS108B - Ambient Temperature & Relative Humidity to USB output

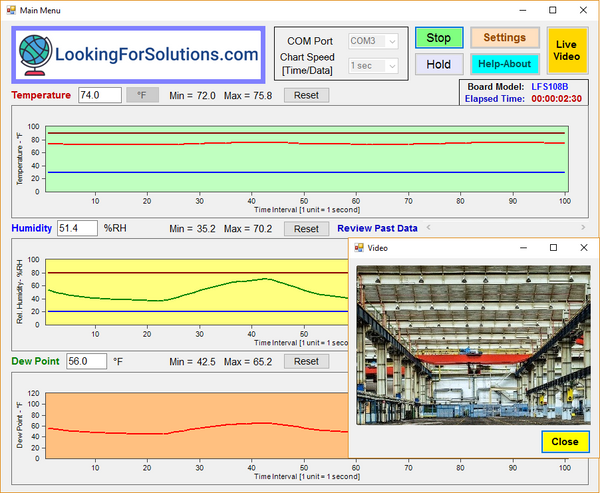

Ambient Temperature, Humidity, Dew Point Temperature sensing software

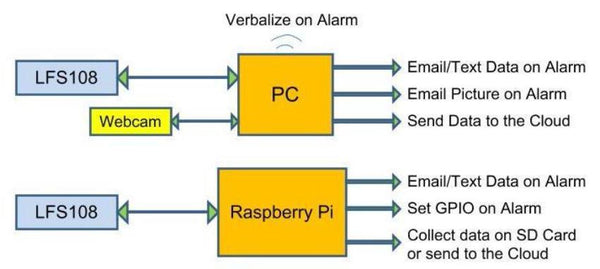

Ambient Temperature, Humidity board connected to PC and Raspberry Pi board
Sensing Devices

Ambient Temperature, Relative Humidity & Dew Point temperature Sensors to USB output - Model LFS108B

Regular price $75.00

RoHS Compliant

Typical Applications

  • Send a tweet alert based on your sensor data from IoT platform ThingSpeak
  • Measure, monitor, and log ambient temperature, relative humidity, and dew point in laboratories, server rooms, data centers, office buildings, hospitals, clean rooms, wine cellars, museums, and factories
  • Measure ambient temperature & relative humidity in Green houses, Farming and Agriculture
  • Measure ambient temperature & relative humidity in research & scientific projects, educational projects and universities
  • Send sensor data to the Cloud for data visualization and analysis - IoT platform ThingSpeak - No subscription fees
  • Use the board as an Evaluation board (Module) in your design for small or large system integrations

Hardware Specification Highlights

  • Temperature Range: -15 to 85 °C (5 to 185 °F)
  • Temperature Accuracy: 1.4 °C (2.5 °F)
  • Relative Humidity Range: 0 to 100 %RH
  • Relative Humidity Accuracy: 3 %RH
  • Dimensions: 2.35 x 0.70 inches (59.7 x 17.8 mm)
  • PC Software is included
  • Connect to Computer boards such as Raspberry Pi. Sample Python program is available
  • Interfaces National Instruments Labview program. Sample vi program is available
  • Product comes with a USB cable

PC Software Specification Highlights

  • Monitors & Logs ambient temperature, relative humidity,  and dew point
  • Sends email and text message on alarm condition
  • Live video of the measurement event via Webcam
  • Takes a picture of the event and emails it on alarm condition
  • Sends real time data to the Cloud for data visualization and analysis
  • Verbalizes a message on alarm condition
  • Software Field Calibration
  • Monitor & Log up to 12 USB sensors simultaneously using our free data acquisition software (LFSDAQ)
User Guide Download Software
