Sensing Devices

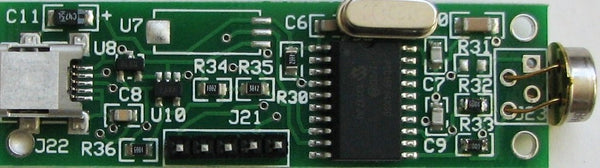

Non-contact Infrared (Local / Remote) & Ambient Temperature sensors to USB output - Model LFS108C series
Regular price
$80.00
Typical Applications
- Remote/External infrared sensor measures temperature in tight and hard to reach places
- Send a tweet alert based on your sensor data from IoT platform ThingSpeak
- Measure, monitor, and log non-contact infrared temperature and ambient temperature in Factory Automation and other industrial applications
- Measure surface temperature of any moving object in different industries such as Steel, Paper, and Plastic.
- Measure temperature of frozen food, produce, and fruits
- Measure temperature of Engine blocks and tires
- Measure temperature of metal annealing & galvanizing process
- Measure infrared & ambient temperature in research projects, educational projects and universities
- Send sensor data to the Cloud for data visualization and analysis - IoT platform ThingSpeak - No subscription fees
- Use the board as an Evaluation board (Module) in your design for small or large system integrations
Hardware Specification Highlights
- Infrared Temperature Range: -40 to 370 °C (-40 to 700 °F)
- Infrared Temperature Accuracy: 1 °C (2 °F)

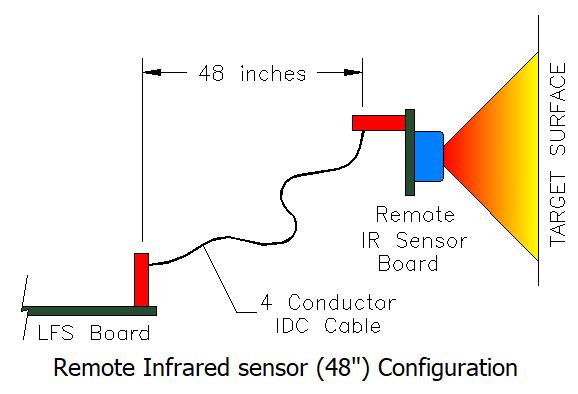

- Remote infrared sensor comes with 48 inches IDC cable
- Ambient Temperature Range: -15 to 85 °C (5 to 185 °F)
- Ambient Temperature Accuracy: 1.4 °C (2.5 °F)
- Emissivity: Adjustable from 0.1 to 1.00
- Sampling time: 125 msec to 30 sec
- Dimensions: 2.35 x 0.70 inches (59.7 x 17.8 mm)
- PC Software is included

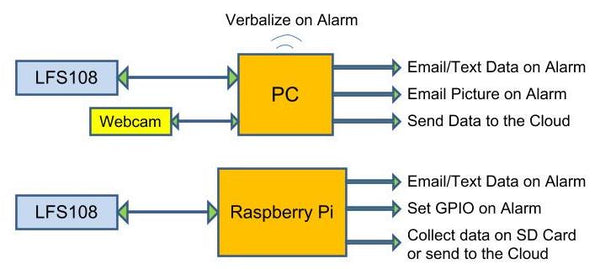

- Connect to Computer boards such as Raspberry Pi. Sample Python program is available
- Interfaces National Instruments Labview program. Sample vi program is available
- Product comes with a USB cable

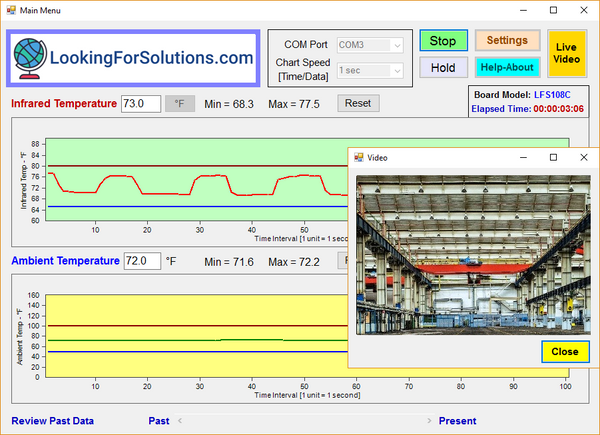

PC Software Specification Highlights
- Monitors & Logs infrared and ambient temperature
- Sends email and text message on alarm condition
- Live video of the measurement event via Webcam
- Takes a picture of the event and emails it on alarm condition
- Sends real time data to the Cloud for data visualization and analysis
- Verbalizes a message on alarm condition
- Software Field Calibration
- Monitor & Log up to 12 USB sensors simultaneously using our free data acquisition software (LFSDAQ)
